Thuren 2019-2025 Ram 2500/3500/PW Track Bar Bracket
Regular price
$280.00
Couldn't load pickup availability
Need to share this part or send this to somebody? Click that little icon thingy for a quick link
Fitment:
- 2013+ 3500
- 2014+ 2500 Dodge Rams
- 2014+ Power Wagons
- Does not function with larger aftermarket diff covers!!
Details:
- First place to start if your vehicle has ANY strange handling traits.
- Made from 1.50"x3/8" wall 1026 DOM tube.
- Delrin machined frame side bushing.
- CNC machined form threaded Heim joint tube end.
- Bead blast textured, then highest quality Powder Coated.
- Adjustable length (within spec)
- Grease fitting for frame bushing.
- Extreme duty FK Teflon lined rod end at axle side.
Fitment:
- 2019+ RAM 3500
- 2019+ RAM 2500
- 2019+ RAM Power Wagon
- Designed to be used with the Thuren Fabrication Trackbar.
- Does not function with the OEM Trackbar.
- May function with other brand aftermarket Trackbars, but we have no information on fitment regarding other brands.
Details:
- Bracket is Laser Cut welded steel.
- Powder Coated finish.

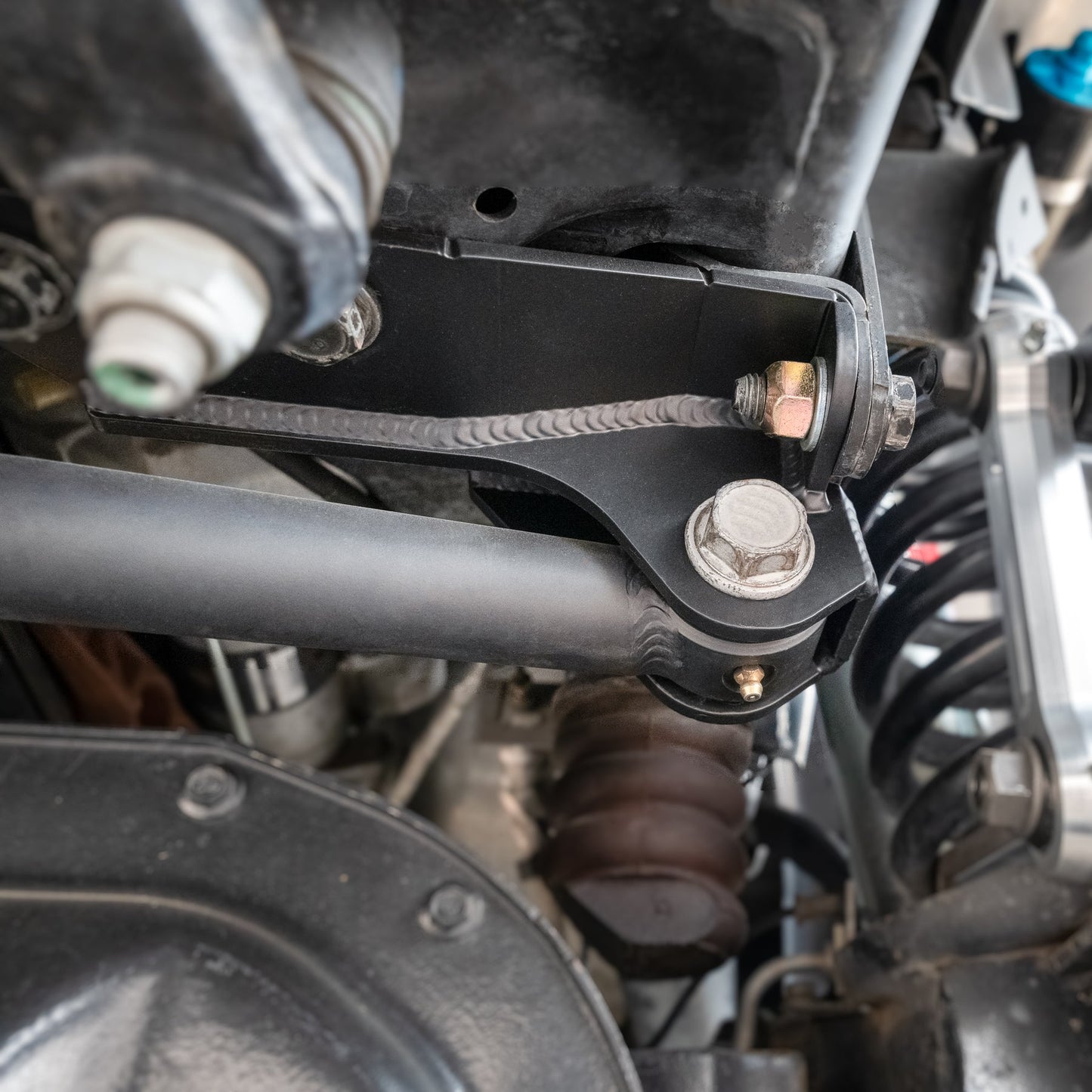

On the 2019+ Ram 2500, 3500, and Power Wagon platforms, the bolt-on frame mount that comes on the truck from OEM, is made from Aluminum. The OEM Aluminum bracket is plenty strong, but we have found that when using an aftermarket Track Bar like ours, the very high mandatory mounting bolt torque combined with the smaller surface area crush sleeve ends, can make the sleeve compress the aluminum.
When this happens it's virtually impossible to keep the Track Bar frame side mounting bolt tight. Our bracket is basically just a copy of the factory aluminum mount, but just made from steel for a bit more long term durability.
When this happens it's virtually impossible to keep the Track Bar frame side mounting bolt tight. Our bracket is basically just a copy of the factory aluminum mount, but just made from steel for a bit more long term durability.
Included:

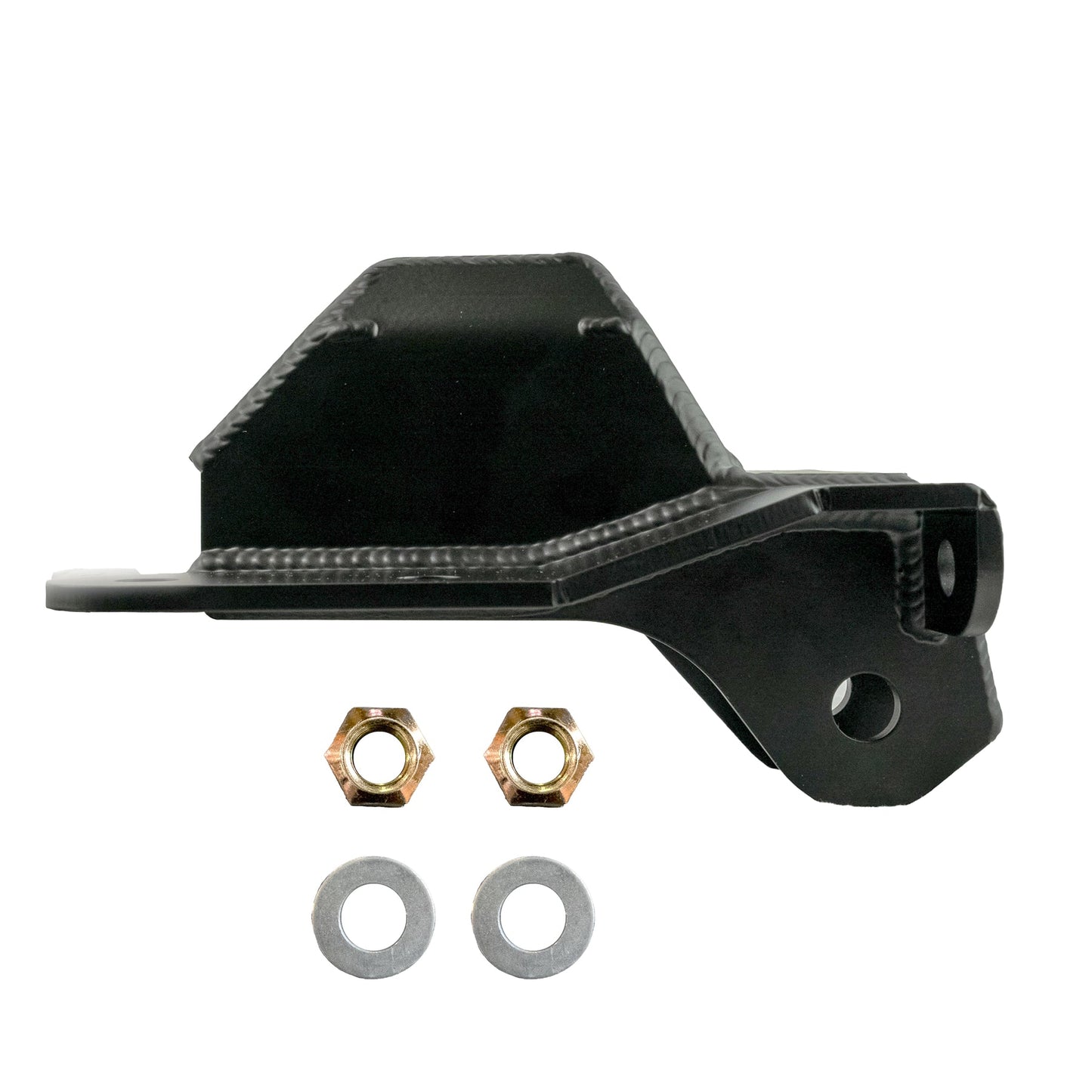

- Thuren Steel Trackbar Bracket (x1)
- Locknut (x2)
- Washer (x2)
