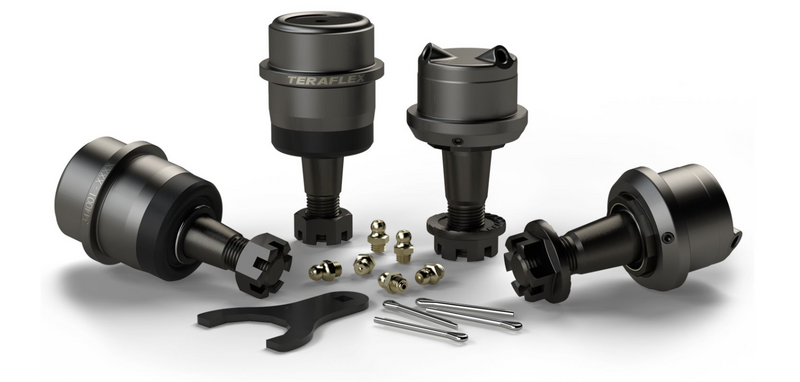

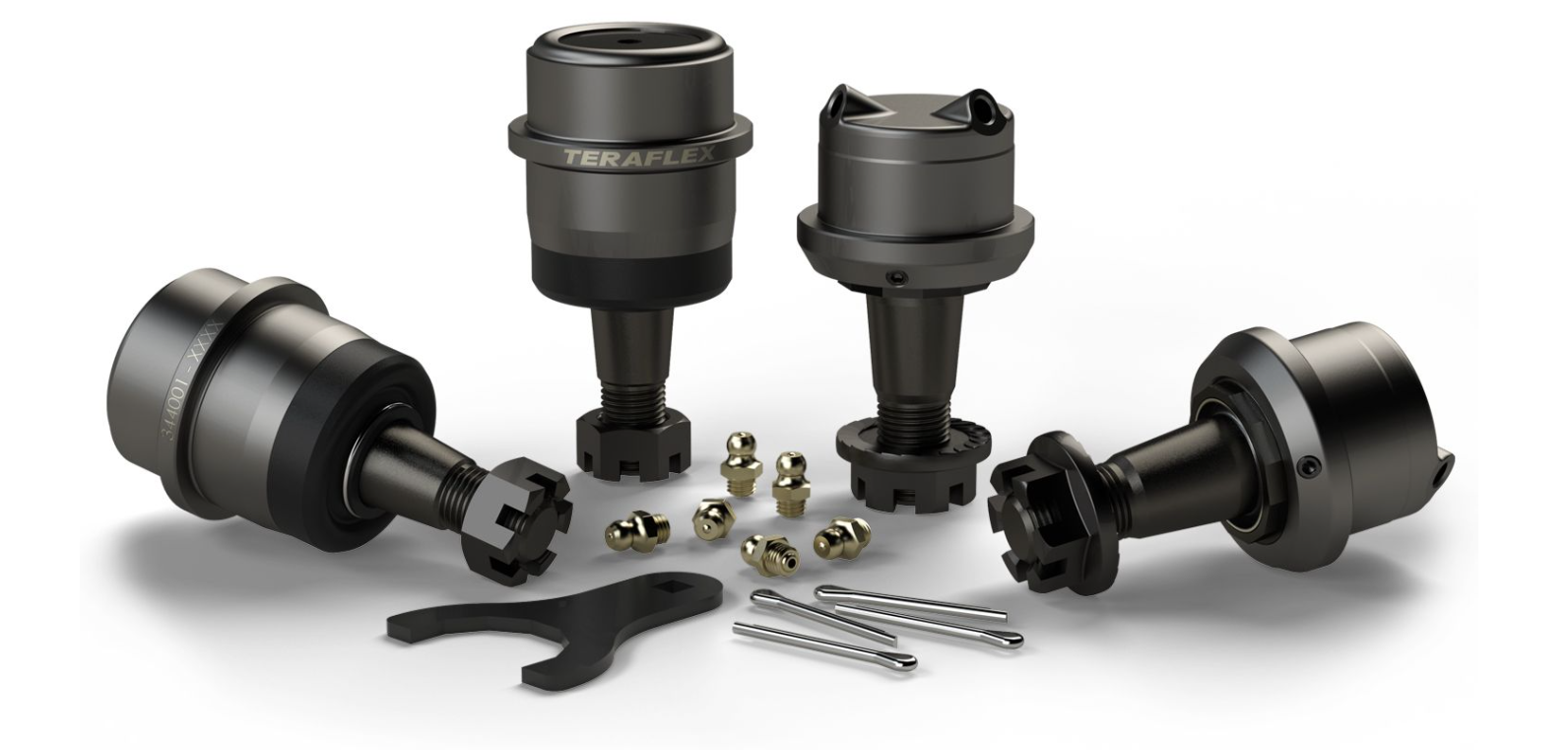

TeraFlex 1997-2006 Jeep Wrangler Dana 30/44 HD Ball Joint Kit w/out Knurl – (2 Upper & 2 Lower)

In stock
SKU: TER1353100 Manufacturer Part Number: 1353100
Regular price $307.99
 More payment options

Need to share this part or send this to somebody? Click that little icon thingy for a quick link

Fits all Jeep Wrangler JK models, including Rubicon.

• TJ Wrangler (short wheelbase) • LJ Wrangler Unlimited (long wheelbase) • YJ Wrangler • ZJ Grand Cherokee • XJ Cherokee • MJ Comanche • Dana 30 front axle • Dana 44 front axle

For most of you out there with a Jeep Wrangler TJ you are probably ready for your second or third set of replacement ball joints.   If you want to do it right this time and make it last then go with these TeraFlex ball joints this time.  Other companies may know ball joints and make them for all models, but TeraFlex knows Jeeps and designed these specifically for what the Jeep needs based on how they are used and modified.

TeraFlex TJ: HD Ball Joints are engineered to handle the increased load caused by oversized tires and offset wheels

• Will NOT work w/ RCV Shafts
• Ball Joints w/out Knurl won’t score the inner knuckle and open the bore.
• Ball Joints w/ Knurl are for inner knuckles that have a “loose press fit” due to repeated ball joint replacement and/or where knurled ball joints have been installed.

• Heat treated 4140 chromoly ball/stud and 1045 carbon steel housing
• Magnesium Phosphate coating to inhibit corrosion throughout

Upper Ball Joint:
• Extremely hard sintered wear bushings to handle extreme side load demands w/out failure
• Factory-style serrated flange nut and grease fitting

Lower Ball Joint:
• Hard alloy tool steel slotted wear plate for ball/stud to socket wear protection
• Wear plate features dual helical grease channels for increased flow through entire joint ensuring longevity and predictable operation
• Factory-style serrated flanged castle nut
 Low-profile single lip dust seal prevents contaminants
• 30mm (1.18") adjustable ball stud for accurate initial and future preload adjustments using simple hand tools
• 2 grease zerk fittings allow greasing access from either side
