ReadyLift 2019-2023 RAM 3500 DIESEL 4WD 4.5'' COIL SPRING LIFT KIT With Falcon Shocks
Couldn't load pickup availability
Need to share this part or send this to somebody? Click that little icon thingy for a quick link
All-new 2019-2023 Ram 3500 4WD HD 4.5" lift kit
4.5-inch front with rear blocks lift kit
Includes all-new transfer case clocking ring and new heavy-duty transmission crossmember.
Includes 4 Falcon 1.1 Monotube shocks tuned specifically for the Ram 3500 HD.
For use on Diesel engine Ram 3500 4WD HD trucks only.
Allows for up to 37x13.50 tires on 20" x 9" wide wheels with -18 offset.
Note: Does not work with Factory Air suspension or Auto Level system (factory helper bags).
The all-new 4.5" Coil Spring Lift Kits allow for even more ground clearance while going to a 37" tire. Springing up to the new 4.5" lift yields all the bells and whistles of a big 6" kit but at a slightly lower, garage-able stance. These kits come with heavy-duty steel radius arm drop brackets, heavy-duty fabricated steel front track bar brackets, forged dropped pitman arm, sway bar relocation brackets, and bump stop extensions preventing over-compression of the included Falcon 1.1 Monotube front & rear shocks. The 4.5" Ram HD kit includes our unique CNC-machined 6061-T6 billet Aluminum Driveline Indexing System (DIS) that re-clocks the transfer case to properly align the front output shaft for improved driveline angles. The Ram 3500 HD comes with a high-output diesel engine DIS system.

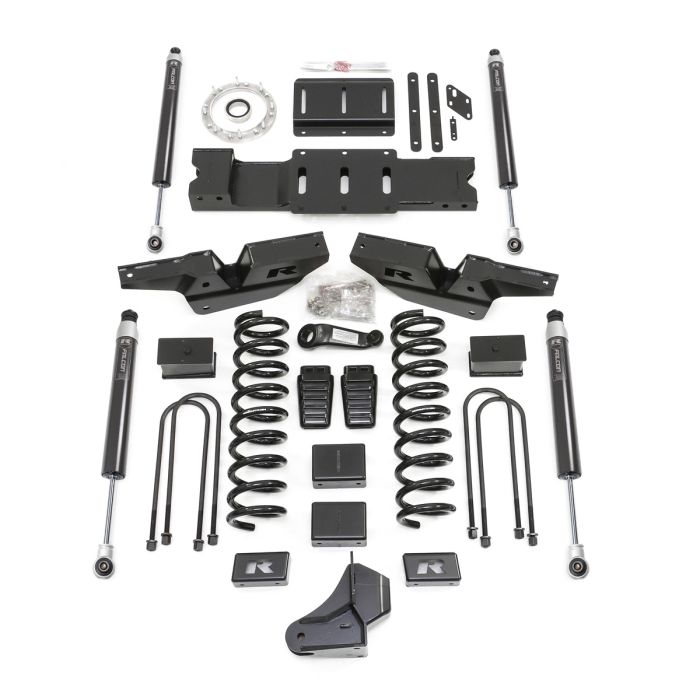

Kit 49-19430 includes the new DIS re-positioning components, heavy-duty and great riding 4.5" lift front springs, 3" lift rear taper blocks, heavy-duty radius arm drop brackets, heavy-duty fabricated steel front, track bar brackets, dropped cast iron pitman arm, front/rear sway bar relocation brackets, and bump stop extensions preventing over-compression of the new Falcon 1.1 Monotube front/rear shocks.
*Kit will not fit any models with the standard output 6.7L diesel motor, HEMI Gasoline engine, dually models, Classic models, and any automatic-leveling rear air suspension models.
