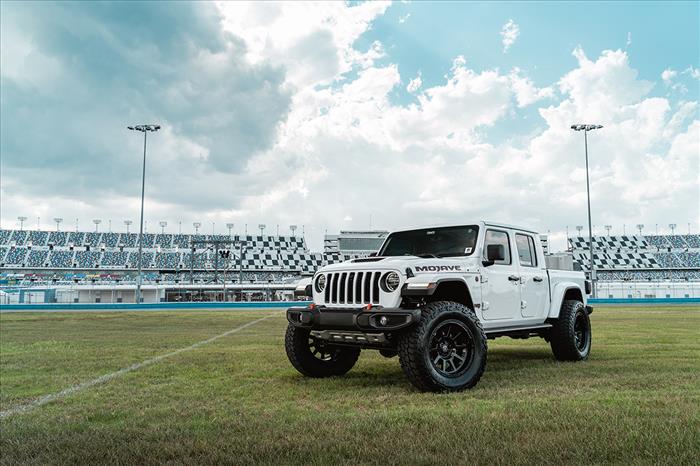

ICON 2020+ Jeep Gladiator 2.5in Stage 4 Suspension System

In stock
SKU: ICOK22104 Manufacturer Part Number: K22104
Regular price $2,490.41

Need to share this part or send this to somebody? Click that little icon thingy for a quick link

The Stage 4 ICON 2.5” Suspension System for the Jeep Gladiator is the ideal setup for drastically improving on-road ride quality and overall performance for the daily driven application that will see frequent, moderate off-road use. This complete suspension system features 2.0 Aluminum Series shocks, 2.5” lift dual-rate front coil springs, a tubular steel fixed front lower link kit, billet front sway bar links, a triple-rate rear coil spring kit, a rear sway bar relocation kit, front and rear adjustable track bars, and all necessary hardware for install. This system provides an increase of over 30% front and 20% rear wheel travel and was designed around the use of a 35” tire. For those looking to run a 37” tire this can be achieved with the ICON Jeep JT Bump Stop Spacer Kit (Part #22071).

FEATURES & BENEFITS

  • 2.5" lift height
  • Fits 35" tires (37" with extended bump stop spacer kit)
  • 33% front, 23% rear increase in wheel travel
  • Improves on and off-road ride quality over stock
  • Front lower links included for caster angle correction and improved front end articulation
  • Dual rate front coil springs with lifetime guarantee against sagging/breakage
  • Triple rate rear coil springs with ICON-engineered droop, ride, and overload rates
  • 2.0 Aluminum Series shocks with vehicle specific valving
  • Front and rear track bars ensure proper alignment and improved articulation
  • Adjustable, billet aluminum front sway bar links
  • 100% bolt-on system makes for an easy install
  • “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability

TECH INFO:

  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 4.5” Backspace / -6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 4.5” Backspace / -12mm Offset
  • Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" with optional bump stop spacer kit PN: 22071)
  • APPLICATION NOTE #127: WILL NOT FIT GLADIATOR MOJAVE TRIM
  • APPLICATION NOTE #150: SHOCKS ARE FULLY SERVICEABLE
  • TECH NOTE: ICON’s advertised lift heights are based around a typical Jeep JT build which usually includes added weight of accessories such as heavier front bumper/winch. Lift heights may be higher than advertised if installed on a stock weighted vehicle.
  • TECH NOTE: Diesel models will net approx. 1.75" of front lift over stock due to their heavier weight.
  • Ships In Multiple Boxes

SYSTEM COMPONENTS:



  • 22021 (QTY: 1) | 18-UP JL/20-UP JT FRONT FIXED LOWER LINK KIT
  • 22025 (QTY: 1) | 18-UP JL/20-UP JT 2.5" FRONT DUAL RATE SPRING KIT
  • 22066 (QTY: 1) | 20-UP JT 1.5" REAR MULTI RATE SPRING KIT
  • 22061 (QTY: 1) | 18-UP JL/20-UP JT FRONT SWAY BAR LINK KIT
  • 22062 (QTY: 1) | 20-UP JT REAR SWAY BAR RELOCATION KIT
  • 22027 (QTY: 1) | 18-UP JL/20-UP JT FRONT ADJ TRACK BAR KIT
  • 22068 (QTY: 1) | 20-UP JT REAR ADJ TRACK BAR KIT
  • 26523 (QTY: 2) | 18-UP JL/20-UP JT 2.5" FRONT 2.0 VS IR
  • 26527 (QTY: 2) | 20-UP JT 2.5" REAR 2.0 VS IR

This Part Fits:



Year Make Model Submodel
2020 Jeep Gladiator Altitude
2021-2022 Jeep Gladiator High Altitude
2020 Jeep Gladiator Launch Edition
2020-2022 Jeep Gladiator Overland
2020-2022 Jeep Gladiator Rubicon
2020-2022 Jeep Gladiator Sport
2020-2022 Jeep Gladiator Sport S
