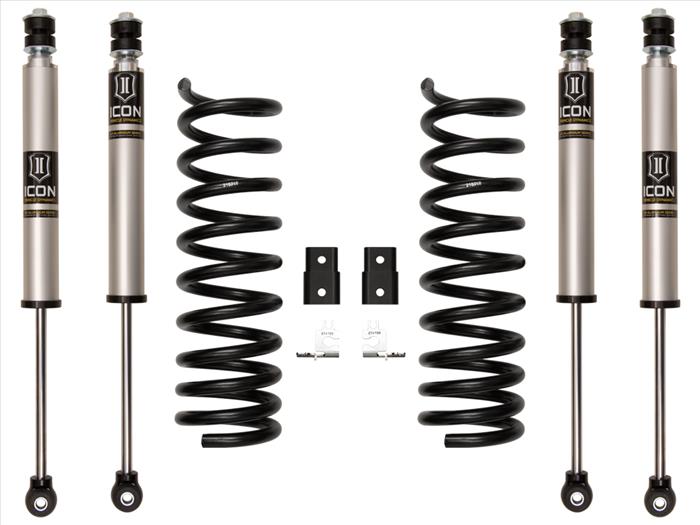

ICON 2019+ Ram 2500 4wd 2.5in Stage 1 Suspension System (Air Ride)

Only 3 left
SKU: ICOK212541A Manufacturer Part Number: K212541A
Regular price $1,019.75

Need to share this part or send this to somebody? Click that little icon thingy for a quick link

ON's 2019 RAM 2500 4WD 2.5” Stage 1 Suspension System is made up of dual rate front coil springs, necessary bracketry and hardware, as well as 2.0 Aluminum Series front and rear shocks. This entry level system improves ride quality and performance both on and off road. The ICON stage 1 system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.

After a thorough inspection of the RAM’s air ride assembly, ICON developed components that properly locate the airbags and associated parts so they are not over-traveled and damaged. This air ride-specific system allows for full functionality of factory air ride modes. Use of optional ICON 2" Air Ride Kit (Part #214212) allows for end-user adjustability of rear ride height from stock to 2" over stock.

FEATURES & BENEFITS

  • ICON engineered dual rate coil springs with match tuned 2.0 Aluminum Series shocks
  • Increased wheel travel and ride quality over stock with no change in towing capacity
  • Less body roll than stock
  • No drive shaft modifications needed
  • Optional ICON 2" Air Ride Kit (Part #214212) allows for end-user adjustability of rear ride height

DOWNLOAD INSTALLATION GUIDE

TECH INFO:

  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5.25” BS / 13mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.50" BS / 12mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.50" BS / 12mm Offset
  • Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required)
  • APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY
  • APPLICATION NOTE #30: AN ADJUSTABLE TRACK BAR MAY BE NEEDED TO REALIGN THE AXLE FROM LEFT TO RIGHT, OR TO ADD ADDITIONAL STRENGTH
  • APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
  • APPLICATION NOTE #90: MAY NOT BE COMPATIBLE WITH OTHER MANUFACTURERS AFTERMARKET TRACKBARS
  • Ships in Multiple Boxes

SYSTEM COMPONENTS:



  • 214200 (QTY: 1) | 14-UP RAM 2500 2.5" FRONT DUAL RATE SPRING KIT
  • 216528 (QTY: 2) | 14-UP RAM 2500 2.5" FRONT LIFT 2.0 VS IR
  • 216532 (QTY: 2) | 14-UP RAM HD AIR RIDE REAR 2.0 VS IR

This Part Fits:



Year Make Model Submodel
2019-2021 Ram 2500 Big Horn
2019-2021 Ram 2500 Laramie
2019-2020 Ram 2500 Laramie Longhorn
2019-2021 Ram 2500 Limited
2021 Ram 2500 Limited Longhorn
2019-2020 Ram 2500 Lone Star
2019-2021 Ram 2500 Tradesman
