Home » Icon 1991-1997 Toyota Landcruiser 3" Lift, Stage 1 Suspension System
Icon

Icon 1991-1997 Toyota Landcruiser 3" Lift, Stage 1 Suspension System

In stock
SKU: ICOK53091 Manufacturer Part Number: K53091
$1,950.80

Need to share this part or send this to somebody? Click that little icon thingy for a quick link

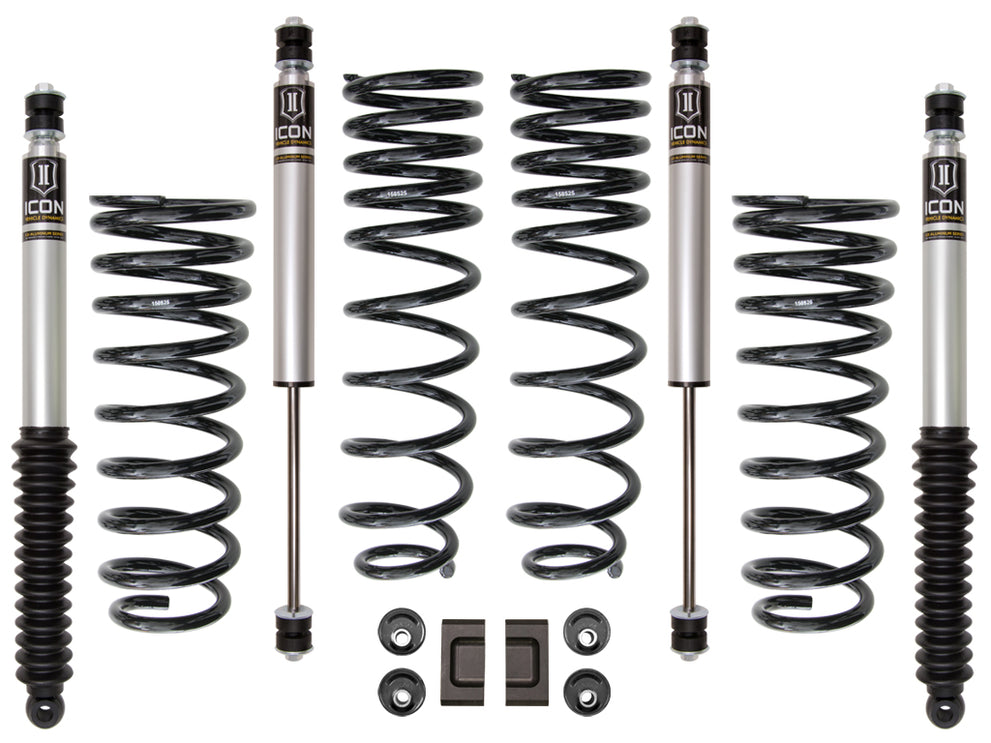

After an in-depth R&D process, ICON engineers have developed a 3” suspension system for the 80 Series that is aimed to improve on-road handling characteristics while also maximizing the Land Cruiser’s off-road potential. This Stage 1 system includes ICON-designed dual rate coil springs, caster correction bushings, sway bar relocation components, all bracketry and hardware required for install, and ICON Vehicle Dynamics 2.0 Aluminum Series shocks that feature a vehicle specific valving for optimized ride quality and balanced damping front to rear. This ICON Stage 1 System is the perfect entry level suspension system for drivers seeking a quality on-road ride with exceptional off-road characteristics as well.
Read less

Key Features

  • 3” lift height
  • Approximately 40% increased front wheel travel over stock
  • Approximately 35% increased rear wheel travel over stock
  • ICON-engineered dual rate coil springs provide exceptional on-road ride quality and outstanding off-road performance
  • Vehicle specific tuned 2.0 Aluminum Series front and rear shocks offer superior shock damping and control
  • 2.0 aluminum body IFP shocks with 5/8" shaft
  • Corrosion resistant anodized aluminum shock body
  • 6061 aircraft grade aluminum CNC machined components
  • 100% bolt-on design means no drilling, cutting or welding necessary for install

Technical Notes

  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: 17x8.5" with 4.63” Backspace
  • Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • APPLICATION NOTE #150: Shocks Are Fully Serviceable
  • TECH NOTE: ICON’s advertised lift heights are based around a typical 80 Series build which usually includes added weight of accessories such as heavier front bumper/winch and heavier rear bumper/spare tire. Lift heights may be higher than advertised if installed on a stock weighted vehicle.
