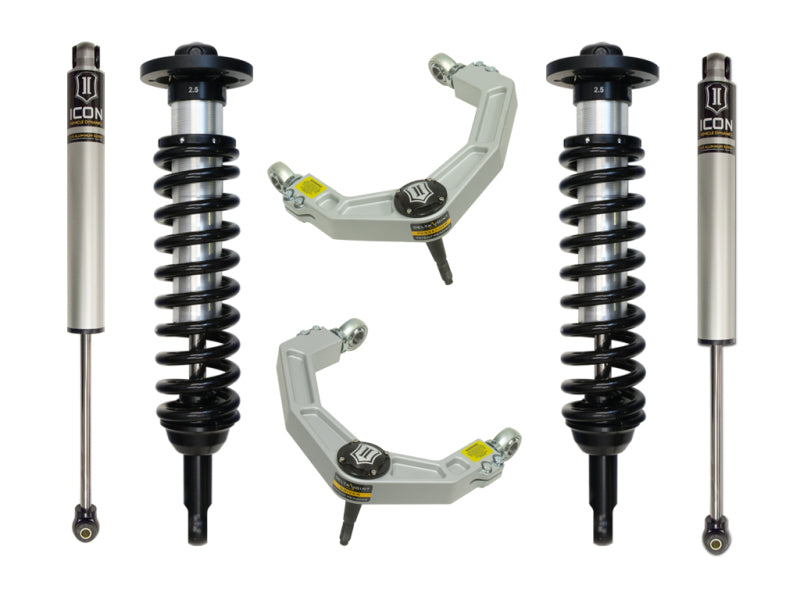

ICON 09-13 Ford F-150 4WD 0-2.63in Stage 2 Suspension System w/Billet Uca
Couldn't load pickup availability
Need to share this part or send this to somebody? Click that little icon thingy for a quick link
This system features upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greasable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
features & Benefits
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Vehicle specific tuned front and rear shocks for superior damping and vehicle control
- Adjustable coilovers provide 0-2.63" of lift height
- Billet upper control arms for added strength, durability, adjustability, and improved alignment geometry
- 6061 aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock body with 7/8" shaft
- FK Rod End bearings for extended longevity and minimal deflection
- 2.0 aluminum body IFP rear shock with 5/8" polished nitro steel shaft
- 100% bolt-on system - no drilling, cutting or welding necessary for install
Tech Info:
- OEM Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended.
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
- Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
- APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
- Ships in multiple boxes
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2009-2013 | Ford | F-150 | FX4 |
| 2009-2013 | Ford | F-150 | King Ranch |
| 2009-2013 | Ford | F-150 | Lariat |
| 2011 | Ford | F-150 | Lariat Limited |
| 2013 | Ford | F-150 | Limited |
| 2009-2013 | Ford | F-150 | Platinum |
| 2009-2013 | Ford | F-150 | STX |
| 2009-2013 | Ford | F-150 | XL |
| 2009-2013 | Ford | F-150 | XLT |
