CARLI 2014-2018 Ram 2500 4x4 Diesel With Rear Coils 3.25" Eventure System

In stock
Manufacturer Part Number: CS-D3-EV25-14-D
$8,541.00
Rear Springs

Need to share this part or send this to somebody? Click that little icon thingy for a quick link

Now available with optional Carli Extended Rear Track Bar.  You must select either the drop bracket for the stock rear track bar or the Extended rear track bar in the options.

Fits 2014-2018 Ram 2500 4x4 Diesel With rear coil spring suspension.

Does Not fit Power Wagon.  Does not work with rear auto-level air suspension. See other listings for trucks with auto-level air suspension

 There are 2 optional "Base Kits" - one includes "R1" rear coils, the other "R2". Scroll down to the long-description to see the comparison and decide which base kit best suits your application!

Front Lift Rear Lift
3.25″ 0.5″ – 2″
Front Travel Rear Travel
9.3″ 11″
Shocks Tire Fitment
2.5″ Carli/SDI Remote Reservoir 37″ x 12.5″




Base Kit Includes:
CS-DEL-R-14    Rear Sway Bar End Links
CS-DFBD-1    Front Bump Drops
CS-DLRC-14-D    Front Linear-Rate Coil Springs
CS-DMRC-14-R1, Or CS-DMRC-14-R2    Rear Multi-Rate Coil Springs
CS-DATB-1419    Adjustable Track Bar with Stabilizer Bracket
CS-DRAD-14    Radius Arm Drops
CS-DCM-20-HK    Transmission Crossmember, Extended Hardware Kit
CS-DRBD-AL    Rear Bump Drops
CS-DEV25SPKG-14-D    Ram EVenture Shock Package with Reservoir Mounts, Stainless Shafts, Brake Line Tabs

The future has arrived. The E-Venture system stays two steps ahead of the driver thanks to data input from a provided engine mounted sensor and factory sensors via the OBDII port. The in-cab mounted “Brain” of this system processes the information through a proprietary algorithm. Thanks to this cornucopia of electronic goodness, the E-Venture System reads and reacts the terrain 250 times per second. The resulting ride is the Best. The “best” is an absolute statement… On road? Off Road? Gravel? Rutted, pot-hole filled unmaintained lease roads? Yes… Yes to all of it. The systems takes the capability of a 2.5″ Shock well beyond the threshold we’ve come to expect!

The shocks themselves are top-tier construction. Hard-anodized aluminum bodies and reservoirs pair with 17-4 Stainless Shock Shafts will stand the test of time and elements. Billet Rod ends house teflon lined bearings to ensure industry leading performance and longevity.

The “Brain” of the system is the ECU (Electronic Control Unit). The ECU Harness uses a large OEM-style connector with a rocker linkage to ensure it remains secured once fastened. We played with a few mounting locations in our R&D and the heat-cycling of our initial under-hood location proved detrimental to the ECU’s operable temperature range. We redesigned the harness to accommodate an in-cab mounting location (under the driver’s seat) and have had no overheating activity since.

The ECU Harness is home to the connectors for the 4 harnesses in the system that allow all transmission of power and data. All connectors are unique to ensure connections to the ECU can’t be mixed up.

  1. Front Shock Harness: Male Connection on the harness, Female on ECU Harness.  Connects 2 Front Shocks to the ECU.
  2. Rear Shock Harness: Female Connection on harness, Male on ECU Harness. Connects 2 Rear Shocks to the ECU.
  3. Power Harness: Wires Power and Ground for the system and includes a fuse Tap to indicate ignition power to the system.
  4. Communication Harness: OBDII, Touch Screen, and IMU Sensor Connections all feed into ECU.

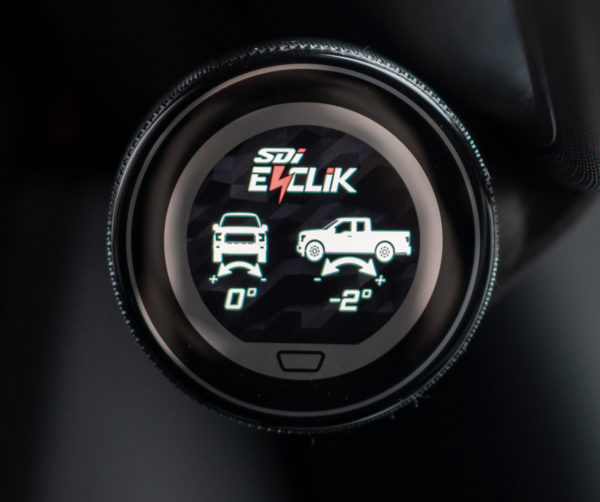

Via the communication harness, the ECU accesses data from the engine mounted IMU (Inertial Measurement Unit). This unit senses any change in pitch/roll of the vehicle. The data from this IMU combines with information gathered from the OBDII port (Brake Pressure, RPM, Steering Angle, Throttle, etc.) to anticipate changes in chassis movement. Subsequently, it firms and softens the shocks where necessary to maintain a chassis that’s as level as possible.

The most important part of the interface is the one with which you interact. SDI put in a TON of work here to ensure a user-friendly interface with clean integration. We worked with them to take it a step further. The Bracket and Touch Screen mount in place of the bottom grab-handle bolt cover placing the touch screen both visible and out of the way. We provide a longer bolt to secure the screen. This location allows for clean routing of the wiring harness that feeds the Touch Screen without the need to trim the grab handle or weather-stripping.

We worked with SDI to refine the drive modes; we wanted to increase the seat-of-the pants change between each mode. Offered on the E-Venture System are Mountain (Rock-Crawl), Street and Desert Modes. This is in order from softest/least sensitive to most controlled/active. These modes have been EXTENSIVELY refined; there’s nothing standard about them. All you, as the customer, need to do is select the mode and the system will activate the profile instantaneously.

Within each of the above modes, users can refine the ride to their taste and it will auto-save the profile. There are adjustments for the front and rear shocks independently to increase control or comfort within each of the drive modes. We tuned and refined our recommended settings to be centered on ALL drive modes but that doesn’t mean you won’t prefer to run the front in the center of the adjustment and rear all the way toward comfort. Point is, it’s completely up to you!
