CARLI 2013-2023 Ram 3500 4x4 Diesel 3.25" Commuter Lift Kit

In stock
SKU: CS-D3-COM-CS-1319-D Manufacturer Part Number: cs-dc20-1319-d
$2,820.00
None
Optional* Add-A-Pack recommended for Commuter Lift Kit, Progressive Leaf Springs or Add-A-Pack Can be used on Backcountry and higher kits
None
Optional* Much of the jarring ride of the 3500 rear can be attributed to the factory vulcanized bushings in the leaf spring pack and shackle. The factory shackle is very strong BUT the design is not conducive to a smooth ride. The Carli shackle is constructed of 1/4″ American cold-rolled steel. The mid-length gusset ensures no deflection while the serviceable bushings offer a far superior ride to the bind of the factory bushings.
*REQUIRED* - You MUST select a Sway Bar option with the BASE Kit. This System has been optimized for use with the Torsion Sway Bar; this sway bar upgrade is a HUGE ride quality upgrade. Maintaining the factory sway bar through use of the Sway Bar Drops is only recommended for customers requiring the stiff rate of the factory sway bar - i.e.: those with snow-plows, in-bed campers or who are constantly hauling to the capacity of the truck.
None
Optional* - Supports up to 12 inches of travel - Compatible with 1"-2" Rear Lift - Restore Factory Payload to Full Progressive Springs - Adjustable Rear Loaded height, 2,000lb Capacity per bag at 100psi
None
*OPTIONAL* - Bolt in steering stabilizer (factory location). Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the left-hand pull inherent to tires like Nitto Trail Grapplers. Run in conjunction with the Carli High Mount for the ultimate Dual, Opposing Steering Stabilizer combination that's infinitely adjustable.
None
*OPTIONAL* - Bolt in compliment to the Carli Low-Mount Steering Stabilizer. Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the right-hand pull inherent to tires like Toyo Mud Terrains. This is NOT a primary stabilizer and MUST be run with either a Carli or OEM lower stabilizer in the factory location.
None
*OPTIONAL* - Icing on the cake, these arms add Limit Strap Protection for your Front Shocks, 1/4" Boxed Steel Construction, and Serviceable 3" - 17-4 Stainless Steel Spherical Bearings.
None
*OPTIONAL* - 1/4" Steel Construction differential skid provides cheap insurance when the terrain becomes unpredictable. Way better to have this and not need it than need it and not have it!
Powered by Globo Product Options
 More payment options

Need to share this part or send this to somebody? Click that little icon thingy for a quick link

Fits 2013-2023 Ram 3500 4x4 Diesel


This system is NOT compatible with trucks equipped with the factory auto-leveling air assist.

Signature Shock Tuning in Fox 2.0″ IFP Shocks provide users with a comfortable, vastly improved on-road ride.

Front Lift Height Rear Lift Height
3.25″ 2-2.5″
Front Travel Rear Travel
9.6″ 11″
Shock Diameter Tire Fitment
2″ 37″ x 12.5″

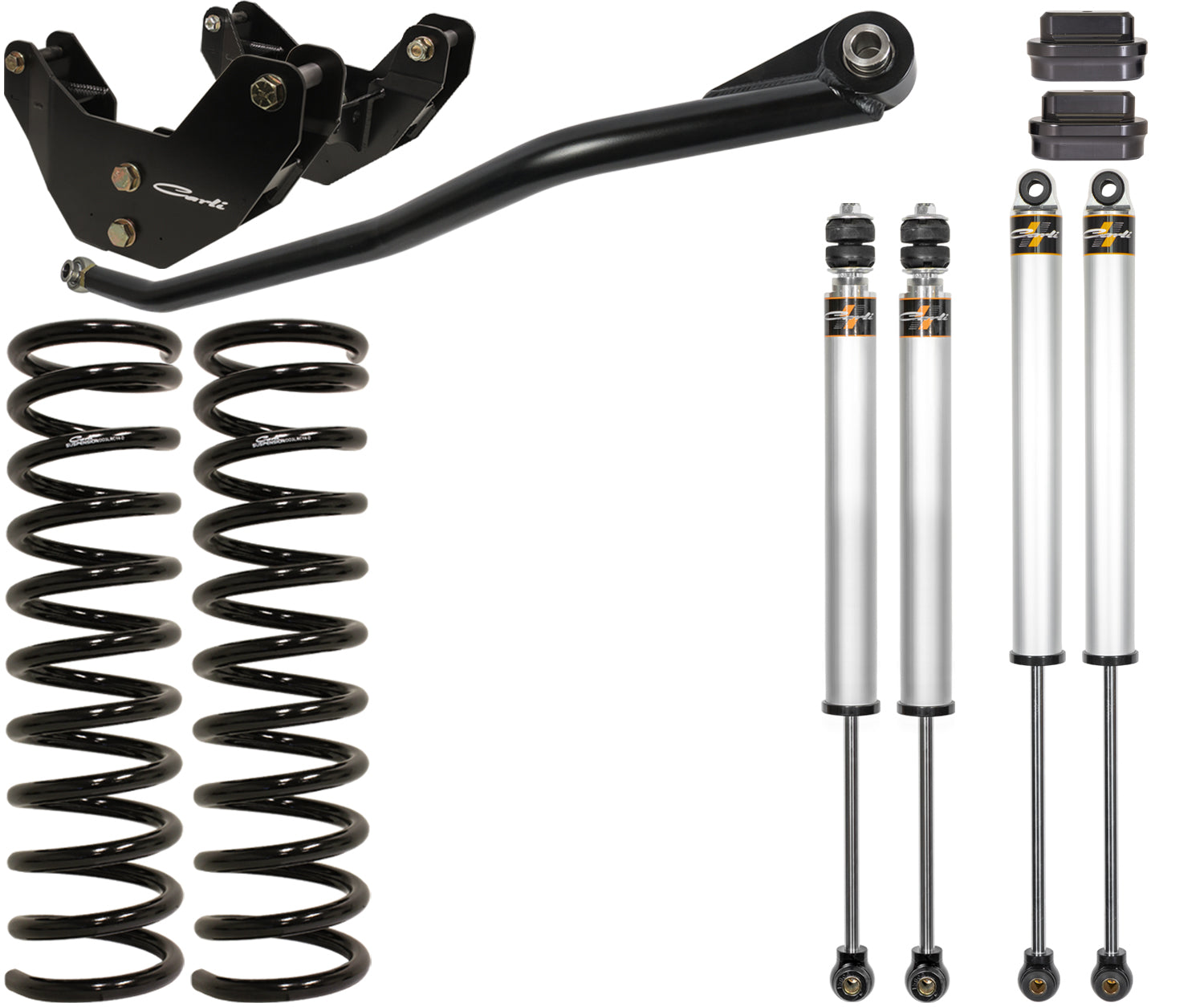

Base Kit Includes:

CS-DFBD-1 Front Bump Drops
CS-DLRC-14-D Front Linear-Rate Coil Springs
CS-DATB-1419 Front Track Bar
CS-DRAD-14 Radius Arm Drops
CS-DCM-20-HK Transmission Crossmember, Extended Hardware Kit
CS-DC20SPKG-13-D Carli Tuned Fox 2.0" IFP Shocks, Front and Rear



The Commuter 2.0 system is designed for people seeking the best on-road ride quality on a budget. Utilizing front and rear Fox 2.0” internal reservoir shocks, we’ve developed a Carli Signature shock tune that delivers all around comfort and ride quality designed for on-road, in town, highway, and towing/hauling. The Fox 2.0s are fully rebuildable, built with hour-glass bushings and boast extruded aluminum construction with a clear anodizing for corrosion resistance. Fox builds these shocks with their legendary red shock oil that flows well down to -55* F. This system was tuned with the Progressive Add-A-Pack and factory 20” wheels on factory tires.

The Details: Your truck will sit 3”-3.5” higher in the front (cab configuration dependent) with 50% more suspension travel than the factory platform thanks to the taller, lighter rate coil springs. The rear is lifted 1”-2” via the Carli Progressive Add-A-Pack. The Progressive Add-A-Pack & Block Combination replaces the factory overload with a 5-Leaf, progressive pack that changes the final rate of the spring pack keeping the rear planted while increasing traction and predictability.

When pairing added down-travel with the taller ride height, the position of the factory, front sway bar will need to be altered as well. For this, we offer two options; Billet Sway Bar Drop Brackets or the replacement Torsion Sway Bar. The Billet Drop Blocks shift the sway bar down and forward to ensure the factory end links cycle properly throughout the entire extended travel range. Carli’s optional Torsion sway bar removes the entire factory sway bar assembly replacing it with a torsion bar supported by fabricated drop brackets and delrin bushings. Fabricated sway bar arms and dual 5/8” FK heim end links round off the package. This is the single best bang for the buck, ride-quality upgrade offered by Carli Suspension.

When lifting the front end of a straight axle truck, the front axle is pulled off-center unless the proper linkages are addressed. Three inches of front lift equates to an axle shifted toward the driver’s side ¾” and, in the radius arm equipped Rams, lightened caster and slight rearward axle shift. This system includes an Adjustable Track Bar to push the axle back toward the passenger side and provide a stronger link with less deflection for the lifted application. We also include Radius Arm Drop Brackets to recenter your caster adjustment and shift the axle forward to its new center of travel. Everything is included to support flawless operation of all components.

Wheel and Tire: This system will fit up to a 37” tire when utilizing wheels that are no more than 9” wide with 5.75-6” of backspacing. A 12.5” wide should fit with no rubbing on the factory radius arm and only minor trimming required, while a 13.5” will require more trimming and slightly more offset to fit properly. 35” tires will fit with VERY minimal, if any trimming. We Recommend running an 18” diameter wheel for optimal ride quality (more rubber = better small bump compliance) on a 35”-37” E-rated tire running 45psi front, 40psi rear when unloaded.
