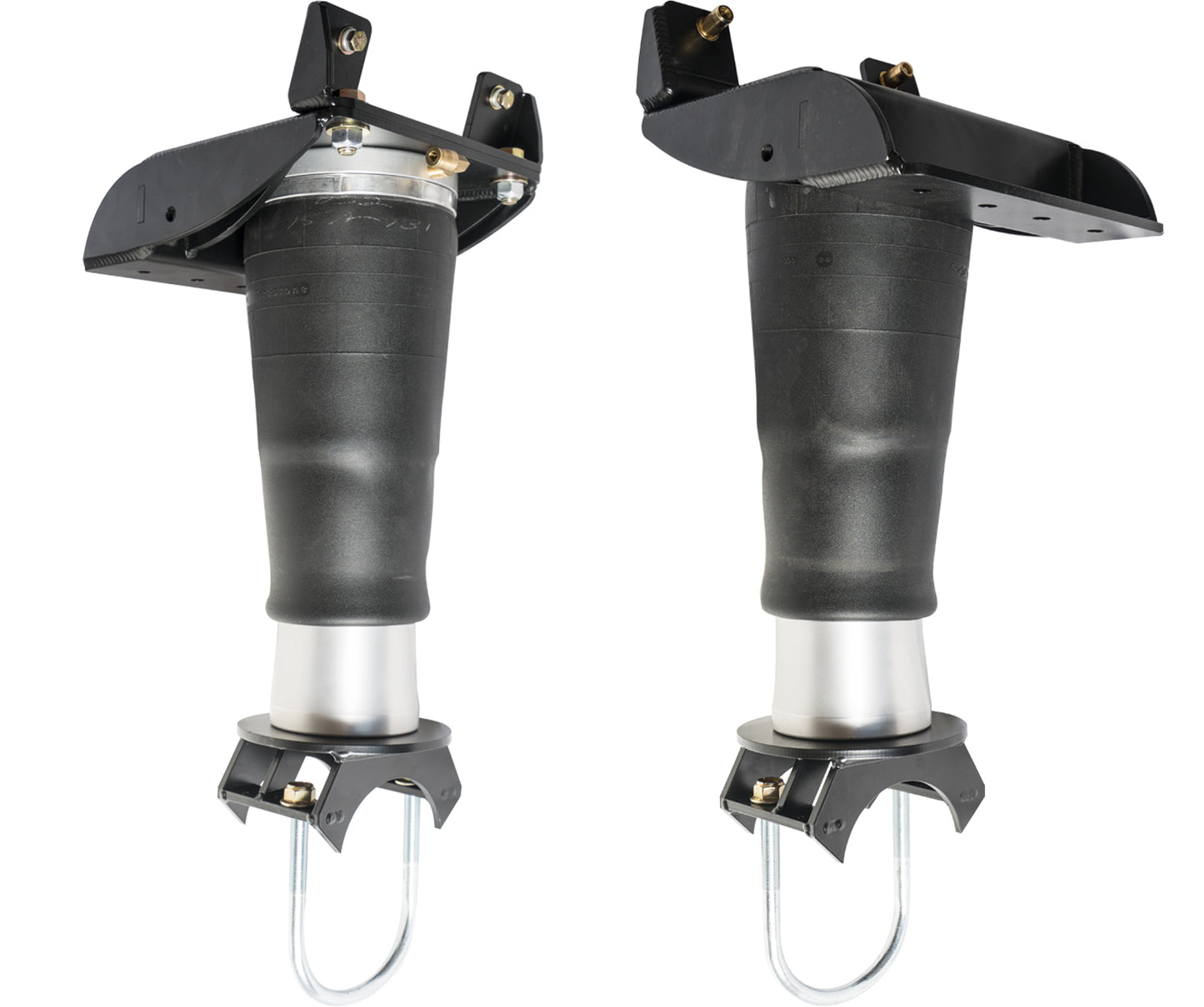

Carli 2012-13 Ram 2500 3500 Diesel Long Travel Air Bag System

In stock
SKU: CS-DLTB-12-D Manufacturer Part Number: CS-DLTB-12-D
Regular price $1,165.00

Need to share this part or send this to somebody? Click that little icon thingy for a quick link

Fitment: 2012-13 Ram 2500 4x4 Diesel, 4.0" Axle Tube
Fitment: 2012 Ram 3500 SRW 4x4 Diesel, 4.0" Axle Tube


- Supports up to 12 inches of travel
- Compatible with 1"-2" Rear Lift, 4" requires CS-AIRBAGSPCR
- Restore Factory Payload to Full Progressive Spring Equipped Rams
- Adjustable Rear Loaded height, 2,000lbs (each) Capacity at 100psi
- Fitment: 2012-13 Ram 2500 4x4 Diesel, 4.0" Axle Tube
- Fitment: 2012 Ram 3500 SRW 4x4 Diesel, 4.0" Axle Tube
Dual rear brake line ONLY
- Includes Extended Rear Brake Lines Required for the Traction Control Equipped Rams

The Ram 3500 Platform was designed to haul, nothing surprising, right? The factory leaf springs are a NIGHTMARE when it comes to ride quality. We have several Suspension Systems adding various levels of ride quality to the platform, none more than those tuned around the Full Replacement Leaf Springs. There’s no substitute for swapping the factory leaf springs in favor our our progressive packs but this comes at a cost to the factory payload. Deaver (our leaf spring manufacturer) doesn’t assign a numeric value to the capacity of thee leaf springs – they’re tossed into a category of “light 3/4-ton” capacity or, slightly reduced from a factory equipped 2500 Ram.

This is a big deal for those who purchased a 3500 for it’s designed application, towing/hauling that want to run our systems for the coveted ride quality gain. The Carli Suspension Long Travel Airbags are now available for the 13+ 3500 Platform. The tapered piston, folding sleeve bag will not interfere with the ride quality of your suspension when not inflated and the internal bump stop in the bag affords an operating range of 0 to 100 psi (bags are rated to 2,000lbs./ea. at 100psi), suitable for big 5th wheels, work trucks, campers, boats, bumper pull trailers and hauling.

The Airbags will travel 12″ and run an industry standard 1/4″ airline and can be plumbed into existing on-board air systems. We provide everything needed to install the airbags and set them up for manual fill.  Again, these airbags were designed to work in conjunction with our Full Progressive Leaf Springs to regain the lost payload capacity and create an adjustable solution for varying loads. These will work with add-a-packs as well but are better suited to the full progressive leaf springs to provide the best unloaded ride and payload capacity.
