Base Kit Includes:



CS-DLRC-10-D Linear-Rate Coils
CS-DLA3-10 Long Arm System
CS-DATB-03 Track Bar
CS-DD30SPKG-03-D-LA Carli Tuned, Long Travel King 3.0" Remote Reservoir Shocks, Stainless Shafts, Limit Straps, Reservoir Mounts
CS-DFST625 Fabricated Shock Tower
CS-DFBD-1 Front Bump Drop 1"
CS-D3BBL-03 Braided Brake Lines, CS-D3BBL-12 Braided Brake Lines
CS-D30GUSSET Dominator Rear Crossmember Gusset Kit
CS-HOLESAWKIT-4.5 Hole Saw & Arbor Kit, 4.5" Hole

The Dominator 3.0” Lift system is a no-compromise utilitarian, all-around suspension system. The front end is converted to our Fabricated Long-Arm System and paired with a Torsion Sway Bar for unrivaled articulation and axle travel. The rear is outfitted with your choice of Full Progressive Leaf Spring Packs and the King Shocks are longer-travel than our short arm systems with a long-arm specific tuning profile. This system is our personal favorite as it would suit anyone’s taste. The on-road ride is fantastic – it’s the softest we offer; the off-road ride will run circles around the Performance 2.5 and allow you to drive to the capability of the chassis without worrying that you’ve equipped the truck with enough shock to destroy the truck around the suspension. If it’s in the budget, this is the system we’d recommend for every Ram owner.

The Details:

This system requires customers to cut off the factory control arm mounts in favor of the Carli Drop Brackets to house our internally gusseted, fully fabricated Long Arm System. These arms are over 50% longer than the factory arms boasting 3/16” construction, internal gusseting, extended travel capability, more linear travel stroke and a better ride quality given their length and position parallel to the ground.

To take advantage of the Long Arm’s capability, we’ve included a 6.25” tall, slide over-design shock tower to ease installation and accommodate the longer (12” Travel) shocks. Included 1” front bump stop drops and limit straps ensure customers can dish repetitive beatings to their King 3.0” shocks with confidence of full & safe utilization of the shock’s travel. In a short arm truck, it’s not uncommon to see 7” of up-travel (metal to metal) and 3” of down-travel. The combination of the long arm system’s 6.25” tall tower and 1” bump drop allows for our 12” travel shock and shifts the front axle’s operating range down 1”; the result, 3” more down-travel when compared to a short-arm system only sacrificing 1” of up-travel. This is a far more balanced setup spec’d with 6” of up travel and 6” of down-travel ensuring the front end maintains contact over rough terrain.

This system boasts Carli specific, blueprinted, Long-Travel King 3.0” shocks on all four corners. We run an OD end cap and weld on rod end with custom fittings to ensure perfect fitment with our slid-over shock towers (MUCH easier installation). We also developed an entirely new valving profile to suit the extended travel application and long arm geometry. We round off ALL our King shocks with shafts machined and polished from a solid piece of 17-4 Stainless. Unlike King’s standard shafts, there is no coating to wear off, weather is far less likely to hurt them and if there is a small chip, you can round the edges with emery cloth to ensure the seal housing isn’t damaged as they’re not brittle like the stock, hardened shafts. The shocks are finished with King oil good to -55* F. Note that all King shocks are built with a plated steel body. If subjected to inclement weather for extended periods, we recommend wrapping your shocks in 3M to provide a moisture barrier that’s replaceable.

Your truck will sit 3”-3.25” higher in the front (year/cab configuration dependent) with 70% more suspension travel than the factory platform thanks to the taller, linear rate coil springs. These systems require the extended travel capability of the linear spring as the free-height of the multi-rate coils was too short to reach the droop potential.

As this is a high-performance, no compromise system, it includes the Carli Torsion Sway Bar and Full Progressive Leaf Springs (No option for extended sway bar links or add-a-packs). The Carli Torsion Sway Bar removes the entire factory sway bar assembly replacing it with a torsion bar supported by fabricated drop brackets and delrin bushings. Fabricated sway bar arms and dual 5/8” FK heim end links round off the package.

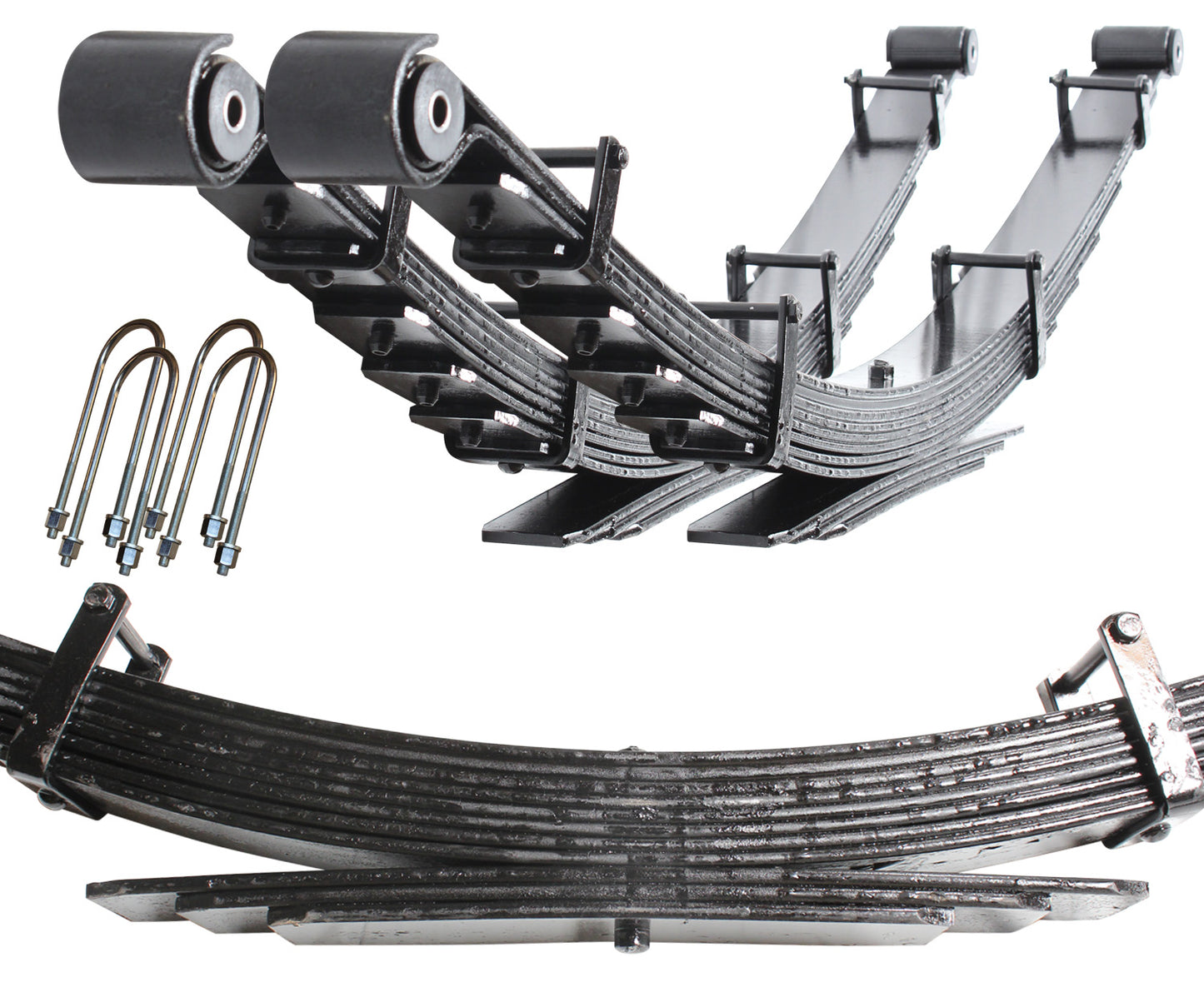

The Full Progressive Leaf Pack lift the rear 1.5-2” by replacing the entire factory leaf spring assembly increasing travel and drastically increasing comfort throughout the entire usable travel stroke at the cost of a 15% payload reduction from a standard 2500. This payload reduction can be supplemented back to factory 3500 SRW capacity with the addition of the Long Travel Airbags for the best of both worlds; ride quality and payload capacity/load control.

When lifting the front end of a straight axle truck, the front axle is pulled off-center unless the proper linkages are addressed. Three inches of front lift equates to an axle shifted toward the driver’s side ¾” and back toward the cab ½”. This system includes an Adjustable Track Bar to push the axle back toward the passenger side and provide a stronger link with less deflection for the lifted application.

Wheel and Tire: This system will fit up to a 37”x12.5” tire with on 17”-18” wheels with 4.5” of backspacing. Significant trimming of stock fenders and front bumper will be required. If considering Fiberglass Fenders, a 37×13.5” wide tire would be possible. This system was tuned with 17” wheels on, 37” Toyo M/T at 40F/35R. The more rubber, the better the small bump compliance will be at proper inflation pressures. The ride will firm up as you go larger in wheel diameter.
