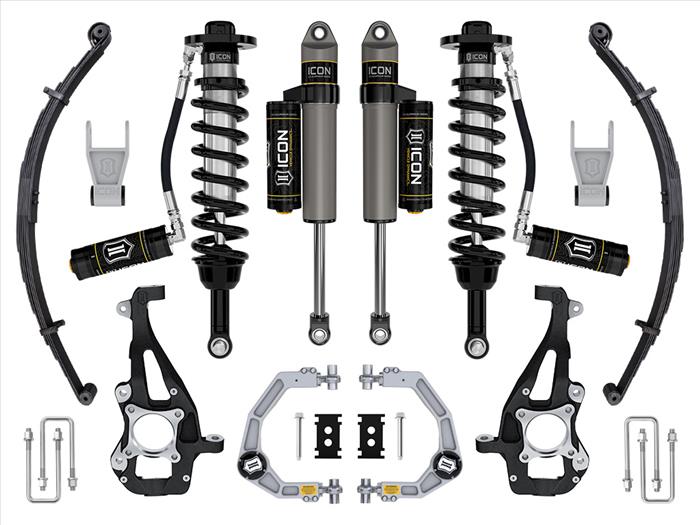

ICON Vehicle Dynamics 2021-2024 Ford F-150 4WD suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers? primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. To achieve this, these systems include high-strength CNC machined ductile iron steering knuckles that replicate the suspension geometry of the F-150 Tremor and are effectively a Tremor ?conversion? for your F-150 4WD. This Stage 3 system includes vehicle-specific tuned 2.5? coilover shocks featuring remote reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle ?feel? through the range of travel. These coilovers are also height adjustable for 3.5-4.5? of front lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. Their combination with the ICON steering knuckles also allows for a 20% increase in wheel travel compared to other ICON F-150 coilover kits. Billet aluminum Delta Joint PRO upper control arms on the F-150 not only add strength and durability, but help retain factory alignment spec range, offer on-vehicle caster/camber adjustment, and allow for the extra lift height this system provides. ICON 2.5 Aluminum Series piggyback reservoir rear shocks utilize a vehicle-specific valving and offer increased damping and heat dissipation, balancing the performance of the truck from front to rear. ICON Multi-Rate Leaf Springs are included to allow rear spring rate and ride height customization, improve ride quality, and reduce axle wrap by eliminating the factory rear blocks. Rear ride height is kept within an acceptable range using the ICON billet aluminum 1" lowering shackles. The ICON Vehicle Dynamics 2021-2024 F-150 4WD Stage 3 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

• OEM Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended.
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5? Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
• Recommended Aftermarket Tires: 34" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
• APPLICATION NOTE #129: Will Not Work With Factory Installed Electronically Controlled Suspension
• APPLICATION NOTE #130: Equipped With Dynamic Bending Headlamps Purchase Part# 611071
• APPLICATION NOTE #152: ICON Delta Joint Pro Upper Control Arms Required
• APPLICATION NOTE #166: If equipped with Dynamic Bending Headlamps and/or OnBoard Scales part # 611081 is also required
• TECH NOTE: Only compatible with 4-wheel drive (4WD) models
• TECH NOTE: Models equipped with PowerBoost hybrid engines will have front lift height range of 3.25-4.25" over stock
• TECH NOTE: Models equipped with Power-Stroke diesel engines will have front lift height range of 3-4" over stock
• TECH NOTE: Not compatible with F-150 Raptor
• TECH NOTE: Not compatible with models equipped with BlueCruise
• TECH NOTE: Not compatible with models equipped with OnBoard Scales
• TECH NOTE: Rear springs can be configured to provide 1.5"-3.5" of rear lift or to tune ride height to compensate for added static weight in rear of vehicle
