14-Up Ram 2500 4WD 2.5in Stage 2 Suspension System
Couldn't load pickup availability
Need to share this part or send this to somebody? Click that little icon thingy for a quick link

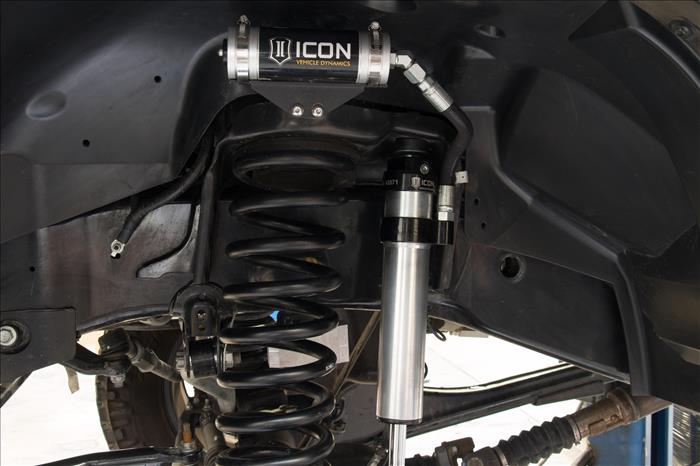

ICON's 2014-UP RAM 2500 4WD 2.5” Stage 2 Suspension System is made up of dual rate front coil springs, necessary bracketry and hardware, as well as 2.5 Aluminum Series reservoir front and rear shocks. This system improves ride quality and performance both on and off road. The ICON stage 2 system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. ICON 2.5 Aluminum Series reservoir shocks ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.
FEATURES & BENEFITS
- ICON engineered dual rate coil springs with match tuned 2.5 Aluminum Series reservoir shocks
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Less body roll than stock
- No drive shaft modifications needed
TECH INFO:
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5.25” BS / 13mm Offset
- Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.50" BS / 12mm Offset
- Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.50" BS / 12mm Offset
- Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required)
- APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY
- APPLICATION NOTE #30: AN ADJUSTABLE TRACK BAR MAY BE NEEDED TO REALIGN THE AXLE FROM LEFT TO RIGHT, OR TO ADD ADDITIONAL STRENGTH
- APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
- APPLICATION NOTE #90: MAY NOT BE COMPATIBLE WITH OTHER MANUFACTURERS AFTERMARKET TRACKBARS
- APPLICATION NOTE #105: NOT FOR VEHICLES WITH REAR FACTORY AIR RIDE
- Ships in Multiple Boxes
SYSTEM COMPONENTS:
- 214200 (QTY: 1) | 14-UP RAM 2500 2.5" FRONT DUAL RATE SPRING KIT
- 217802P (QTY: 1) | 14-UP RAM 2500 2.5" FRONT 2.5 VS RR PAIR
- 217704P (QTY: 1) | 14-UP RAM 2500 0" COIL / 3" AIR RIDE REAR 2.5 VS PB PAIR
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2014-2022 | Ram | 2500 | Big Horn |
| 2014-2022 | Ram | 2500 | Laramie |
| 2014-2015 | Ram | 2500 | Laramie Limited |
| 2014-2022 | Ram | 2500 | Laramie Longhorn |
| 2016-2022 | Ram | 2500 | Limited |
| 2021 | Ram | 2500 | Limited Longhorn |
| 2014-2015,2019-2022 | Ram | 2500 | Lone Star |
| 2014-2016 | Ram | 2500 | Outdoorsman |
| 2014-2018 | Ram | 2500 | SLT |
| 2014-2022 | Ram | 2500 | Tradesman |
